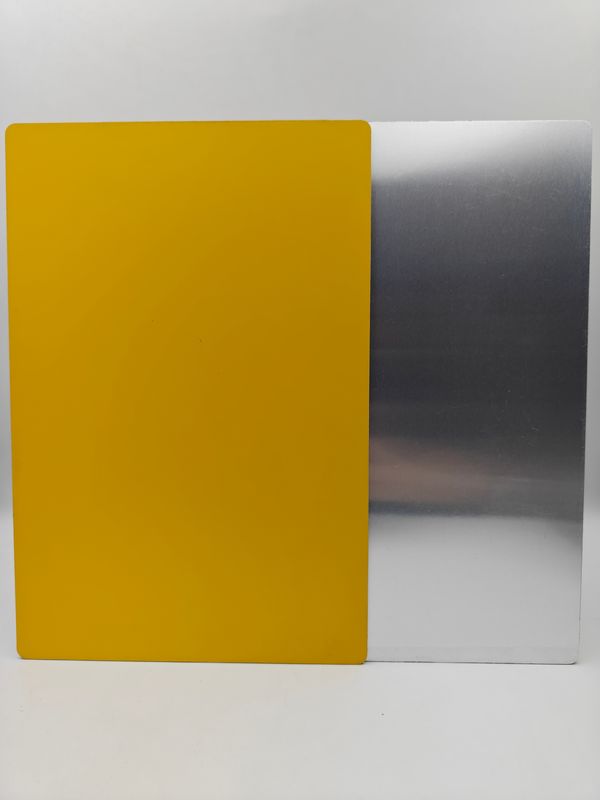

ACP Fire Rated Panels 6.0mm with 0.5mm Alloy PVDF Coating

ACP Fire Rated Panels Featuring 0.5mm Alloy, 6.0mm Thickness, PVDF Coating

Company Overview

Foshan Nanhai Huashi Decoration Material Co., Ltd., established in 1999, is a veteran manufacturer of premium-grade aluminum composite panels (ACP), delivering advanced cladding and architectural solutions under the "Richly Bound" brand. Backed by ISO 9001:2008 certification and decades of production expertise, our facility utilizes continuous extrusion composite technology to produce ACPs that meet the stringent requirements of international construction and fire safety standards.

Product Summary

The ACP Fire Rated Panels with 6.0mm total thickness and 0.5mm aluminum skins are engineered for high-demand applications that require both structural strength and top-tier fire safety. Featuring a durable PVDF (Polyvinylidene Fluoride) coating, this product is ideal for use in building facades, curtain walls, tunnel linings, transport hubs, and industrial enclosures where longevity and regulatory compliance are non-negotiable.

Key Features

1. A2 Fire Resistance Certification
Tested by the National Research Center of Testing Techniques for Building Materials, these panels meet the A2-s1, d0, t0 classification under GB 8624-2012, confirming their suitability for fire-restricted zones:

• Core calorific value: 1.9 MJ/kg (vs. ≤3.0 MJ/kg standard)

• No flaming droplets or particles (d0), minimal smoke production (s1)

• Smoke toxicity rating: ZA1 – Quasi Safety Level-One

• Excellent thermal and combustion stability

2. Reinforced 0.5mm Aluminum Alloy Layers

• Both front and back skins feature 0.5mm aluminum, providing enhanced strength, flatness, and impact resistance

• Greater panel rigidity ensures reduced vibration, distortion, and deformation

• Suitable for large-scale installations and high-rise façade systems

3. PVDF Coating for Weather and UV Protection

• PVDF fluorocarbon finish resists UV radiation, acid rain, humidity, and pollution

• Long-term color and gloss retention (over 20 years of outdoor use)

• Coating thickness ≥38μm, exceeding industry benchmarks

4. High Mechanical Performance
Conforms to GB/T 17748-2016 standards:

• Bending strength: up to 124 MPa

• Shear strength: 30.4 MPa

• Climbing drum peel strength: avg. 128 N·mm/mm

• Thermal distortion temperature: 97°C

• Passed tests for impact resistance, flexibility (≤2T), adhesion (Grade 0), and boiling water resistance

5. Processable and Installation-Friendly
Despite its heavier gauge, the panel supports:

• Cutting, slotting, routing, drilling, and folding

• Installation via rivets, bolts, adhesives, or mechanical brackets

• Suitable for curved or shaped surfaces with proper processing equipment

Application Scenarios

The superior thickness and reinforced aluminum skins make this panel ideal for:

• High-rise and supertall building exteriors

• Industrial plant cladding and machinery enclosures

• Tunnel and subway wall panels

• Airport terminals and train station interiors

• Ventilated façade systems and fire-protected curtain walls

• Commercial building upgrades requiring code-compliant exterior finishes

Conclusion

The ACP Fire Rated Panels with 0.5mm aluminum skins, 6.0mm overall thickness, and PVDF coating are a high-strength, fire-safe solution for mission-critical architectural and industrial applications. These panels offer superior rigidity, long-term outdoor durability, and proven safety compliance—making them a reliable choice for complex and demanding environments.

For full technical specifications, test reports, custom color options, or volume pricing, please contact our team today.
