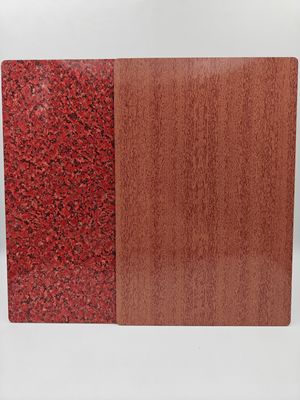

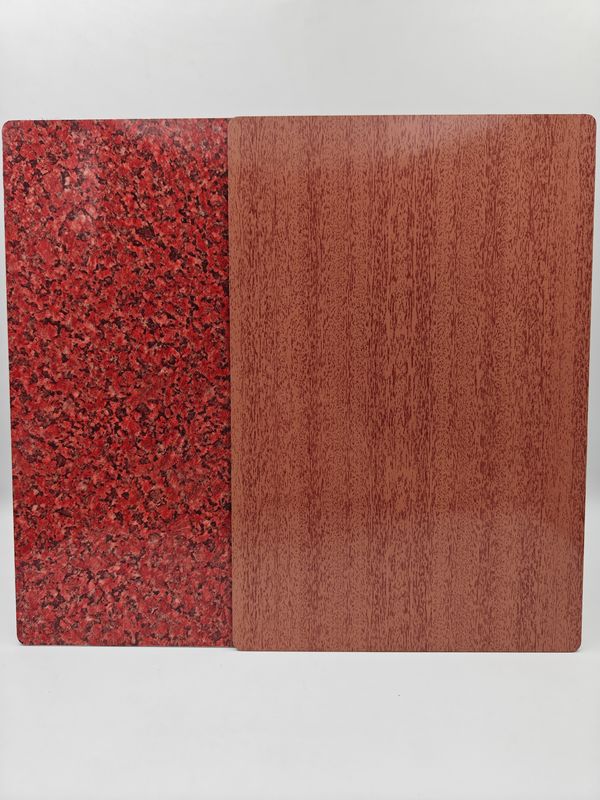

Fire Rated ACP Sheets 3.0mm Thickness With 0.2mm Aluminum Layer PVDF Coating For Curtain Wall Systems

Fire Rated ACP Sheets - 3.0mm Thickness with 0.2mm Aluminum Layer and PVDF Coating for Curtain Wall Systems

Company Overview

    Established in 1999, Foshan Nanhai Huashi Decoration Material Co., Ltd. has over two decades of specialized experience in the aluminum composite panel (ACP) industry. Leveraging state-of-the-art continuous extrusion composite sheet production technology, we are committed to manufacturing high-performance ACP solutions that meet the evolving demands of modern architecture. As a pioneer in quality management, we are proud to be among the first in the industry to achieve ISO 9001:2008 certification and have earned multiple industry accolades under our renowned “Richly Bound” brand.

Product Summary

Our Fire Rated ACP Sheets – 3.0mm thickness with 0.2mm aluminum layer and PVDF coating are specifically engineered for curtain wall systems, offering exceptional performance in fire resistance, weather durability, structural reliability, and aesthetic appeal. These panels represent the ideal synergy between aluminum and non-metallic polyethylene core materials—combining the best of both worlds in one lightweight yet robust solution.

Key Features

1. Certified A2 Fire Performance
Tested by the China National Research Center of Testing Techniques for Building Materials, our ACP sheets meet the stringent criteria of A2-s1, d0, t0 as per GB 8624-2012 standards.

• No flaming droplets or particles within 600 seconds

• Very low smoke production (SMOGRA ≤ 1 m²/s²)

• High smoke toxicity rating: ZA1 - Quasi Safety Level-One

• Calorific values well below the thresholds (≤3.0 MJ/kg for core material)

2. Superior Physical & Mechanical Performance
In compliance with GB/T 17748-2016, the product demonstrates:

• Flatness & dimensional accuracy: Minimal deviation in length, width, thickness, and straightness

• Aluminum skin thickness: Guaranteed minimum of 0.20mm with consistent coating application

• Coating thickness: PVDF coating exceeding 38μm, ensuring long-term durability and resistance

• Excellent adhesion and peel strength: Climbing drum peel values ≥128N·mm/mm

• Mechanical strength: Bending strength ≥110MPa; Shear strength 30.4MPa

3. Weather & Corrosion Resistance

• Color and gloss remain stable even under long-term outdoor exposure

• Resistant to acid (10% H₂SO₄), alkali (10% NaOH), and salt spray

• No observable degradation under nitric acid, alkali, solvent, and boiling water immersion

• High temperature resistance: thermal distortion temperature ≥97°C

4. Lightweight Yet Rigid
With a high strength-to-weight ratio, these panels weigh only ~60% of traditional aluminum plates and ~30% of steel plates while delivering comparable or superior stiffness (E·j).

5. Process-Friendly for Fabrication

• Compatible with standard metalworking and woodworking tools

• Supports cutting, slot milling, folding, bending, punching, welding, and screen printing

• Ideal for complex geometries such as curves, arcs, and tight corners

• Quick to assemble using rivets, self-tapping screws, or adhesives

Applications

Thanks to its fire-safe, lightweight, and decorative characteristics, this product is suited for a wide array of use cases:

• Architectural Exteriors: High-rise curtain walls, facades of office towers, commercial buildings, villas

• Interior Decoration: Walls, ceilings, partitions for offices, residences, hotels, and retail spaces

• Public Infrastructure: Airports, train stations, subways, hospitals, schools, sports arenas

• Signage & Advertising: Billboards, shop signage, wayfinding systems, digital prints

• Transportation: Bus bodies, rail cars, marine vessels, and lightweight aircraft interiors

• Furniture Manufacturing: Kitchen cabinetry, wardrobes, modern interior fixtures

• Cleanroom & Industrial Use: Machinery enclosures, protective covers, and anti-contamination environments

Conclusion

Fire Rated ACP Sheets – 3.0mm thickness with 0.2mm aluminum layer and PVDF coating combine certified A2-grade fire resistance with outstanding weatherability, structural strength, and design flexibility. This makes it an optimal choice for curtain wall systems and any architectural application that demands both safety and style.

For further technical details or quotation requests, please contact our sales team.
